Module FillMatrix

Overview

Throughout all MOHID modules, two-dimensional (e.g. water elevation, wave height, wind velocity, bottom roughness length, etc.) and three-dimensional (e.g. temperature, salinity, nitrate concentrations, etc) variables need to be initialized. Also in some simulations these variables have an imposed solution which needs to be read from a file. In order to reduce input data errors, increase programming efficiency and normalize input data files format a generic input data module (ModuleFillMatrix) was designed.

This module has a quite vast set of options to initialize and read 2D and 3D arrays, being these options defined in MOHID input data files. The idea is quite simple, and is based on the fact that each 2D or 3D array to used/computed in MOHID is defined in the input data files in the form of a block.

ModuleFillMatrix works based on a client/server philosophy, where the client module (e.g. ModuleWaterProperties is responsible for property temperature) requests the server module (ModuleFillMatrix) to handle the initialization (or modification) of the array. Thus, the client module sends information to ModuleFillMatrix about the input data file, namely the identification number (ID) of the file and the ID of the block in the file where the options for property X are defined.

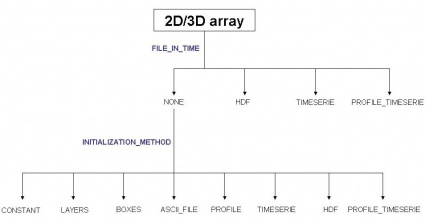

ModuleFillMatrix input data scheme

Reading solution from a file

The first operation ModuleFillMatrix does is to check whether the array is only to be initialized or if it is to be modified during the simulation from information stored in a file.

This option is given by keyword FILE_IN_TIME.

Time series file

Uses a Time Series file to initialize the property.

FILE_IN_TIME          : TIMESERIE
FILENAME              : ..\..\GeneralData\myTimeSeriesFile.dat
DATA_COLUMN           : 2
DEFAULTVALUE          : 0

HDF file

Reads the solution from an HDF file.

FILE_IN_TIME          : HDF
FILENAME              : ..\..\GeneralData\myHDFfile.dat
VGROUP_PATH           : \Results
MULTIPLYING_FACTOR    : 1
HDF_FIELD_NAME        : temperature
DEFAULTVALUE          : 15

Time series profile file

FILE_IN_TIME          : PROFILE_TIMESERIE
FILENAME              : ..\..\GeneralData\myProfileTimeSeriesFile.dat
DEFAULTVALUE          : 5

Initialization methods

This option is given by keyword INITIALIZATION_METHOD.

Constant

Assumes a constant value to initialize the property.

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : CONSTANT
DEFAULTVALUE          : 20

ASCII Grid Data file

Uses a Grid Data file to initialize the property.

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : ASCII_FILE
FILENAME              : ..\..\GeneralData\myGridDataFile.dat
DEFAULTVALUE          : 0

Boxes

Uses a Boxes file to initialize the property. The default value is given to every grid point which is not inside any of the defined boxes.

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : BOXES
FILENAME              : ..\..\GeneralData\myBoxesFile.dat
BOXES_VALUES          : 12.3  15.2  12.7  13.4  14.1
DEFAULTVALUE          : 0

Layers

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : LAYERS
LAYERS_VALUES         : 35.4  35.2 36.1
DEFAULTVALUE          : 35.5

Profile file

Uses a Profile file to initialize the property.

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : PROFILE
FILENAME              : ..\..\GeneralData\myProfileFile.dat
DEFAULTVALUE          : 15

Analytical profile

An analytical profile can be given with a linear or a exponential format.

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : ANALYTIC_PROFILE
DEFAULTVALUE          : 20

For a linear profile ($Value = DefaultValue + CoefA * \frac{CellDepth} {CoefB}$) define:

PROFILE_TYPE          : LINEAR

For a exponential profile ($Value = DefaultValue - CoefA^{- \frac{CellDepth} {CoefB}}$) define:

PROFILE_TYPE          : EXPONENTIAL

The coefficients can be given by the following keywords:

CoefA                 : 0.1
CoefB                 : 4500

HDF file

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : HDF
VGROUP_PATH           : \Results
MULTIPLYING_FACTOR    : 1
HDF_FIELD_NAME        : temperature
DEFAULTVALUE          : 15

Time series file

Uses a Time Series file to initialize the property.

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : TIMESERIE
FILENAME              : ..\..\GeneralData\myTimeSeriesFile.dat
DATA_COLUMN           : 2
DEFAULTVALUE          : 0

Time series profile file

FILE_IN_TIME          : NONE
INITIALIZATION_METHOD : PROFILE_TIMESERIE
FILENAME              : ..\..\GeneralData\myProfileTimeSeriesFile.dat
DEFAULTVALUE          : 10

Important notes

Keyword DEFAULTVALUE has always to be present. This insures that the user must be aware of the initialization option.

Keyword REMAIN_CONSTANT defines whether the property will remain unaltered during the simulation. By default this boolean keyword is FALSE, which means that the model will dynamically compute the property values (e.g. current velocities) or it will read them from a file (e.g. wind speed and direction). If it's TRUE this means that the property values will remain constant throughout the simulation (e.g. constant wind speed and direction in a scenario simulation).

List of properties which are handled by Module FillMatrix

ModuleAtmosphere

All properties of this module are 2D arrays:

• wind modulos
• wind angle
• wind velocity X
• wind velocity Y
• air temperature
• relative humidity
• sun hours
• cloud cover
• irrigation
• precipitation
• solar radiation
• atmospheric pressure
• mean sea level pressure

ModuleAssimilation

All 2D/3D fields which can be used for any type of relaxation scheme or reference solution. This includes the reference fields and the decayment coefficients.

ModuleConsolidation

• porosity (3D)
• stationary porosity (3D)
• rosion critical shear stress( 3D)

ModuleHydrodynamic

• water level(2D)
• velocity U (3D)
• velocity V (3D)
• drag coefficient (3D) - used in when parameterizing obstacles

ModuleInterfaceWaterAir

• latent heat
• sensible heat
• net long wave radiation
• upward long wave radiation
• downward long wave radiation
• evaporation
• “non-solar” flux
• wind shear stress X
• wind shear stress Y
• Surface radiation
• Turbulent kinetic energy
• wind shear velocity
• carbon dioxide flux
• oxygen flux

ModuleInterfaceSedimentWater

• manning coefficient (2D)
• rugosity coefficient (2D)
• “wave” rugosity coefficient (2D)
• Erosion critical shear stress (2D)
• Deposition critical shear stress (2D)
• Erosion reference rate (2D)
• Diffusion coefficient (2D)
• Consolidation rate (2D)
• Other properties* (2D)

ModuleSand

• D35
• D50
• D90
• bed rock
• sand classes diameter
• sand classes percentage

ModuleSedimentProperties

• Other properties*
• Partition fraction
• Partition rate
• Sediment dry density
• Turbulent horizontal diffusion coefficient
• Turbulent vertical diffusion coefficient

ModuleTurbulence

• horizontal viscosity
• vertical viscosity

ModuleWaterProperties

• sigma-T (density)
• specific heat
• filtration rate
• other properties*

ModuleWaves

• wave height
• wave period
• wave direction
• radiation stress X
• radiation stress Y

Links

Read the FillMatrix Module manual
